Stereotypical behaviors are key indicators of ASD. Monitoring these behaviors are essential for early diagnosis and personalized care planning. However, these behaviors differ from general physical activities, making them difficult to detect using standard computer vision methods. Existing tools have neglected the automated recognition of such behaviors in real-world settings, highlighting a critical gap that we aim to address.

1.1. Datasets

To train and evaluate our model, we utilized two autism-specific datasets: the Self-Stimulatory Behaviors in the Wild for Autism Diagnosis (SSBD) dataset and the Expanded Stereotype Behavior Dataset (ESBD). These datasets present numerous challenges due to their real-world, uncontrolled recording environments. These include spatial variance caused by children's mobility, presence of objects used in stimming, sudden camera shifts, and short bursts of STB amid long video durations. Additionally, some data loss occurred due to unavailable URLs, which reduced the total number of videos. SSBD and ESBD videos were shared by parents and caregivers on public platforms and categorized into three stimming behaviors: arm flapping, head banging, and spinning. Arm flapping often occurs when children struggle with communication or experience sensory overload. Head banging involves self-injurious actions such as hitting the head with hands or against solid objects, while spinning involves repetitive full body turning movements. All videos included were reviewed and validated by professional clinicians to ensure authenticity and diagnostic relevance.

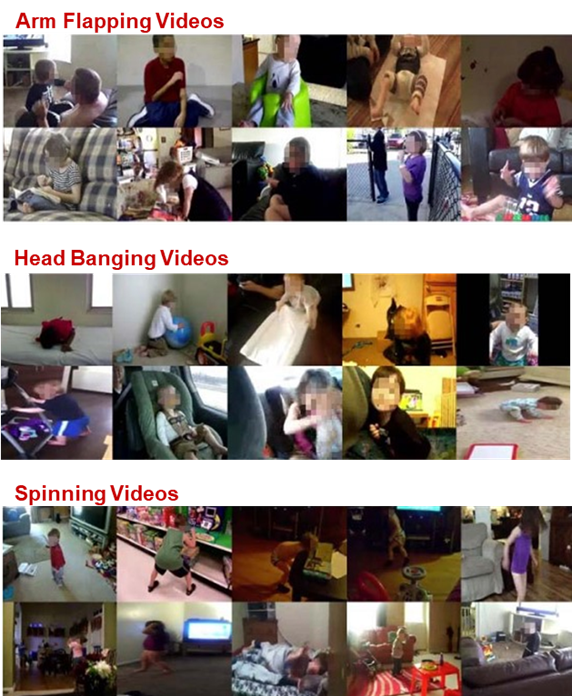

Figure 1.1 Examples of Stereotypical Behaviors from SSBD and ESBD Datasets.

1.2. Preprocessing

These two datasets are noisy and contain a large portion of the background or other subjects. To enhance recognition accuracy, we first preprocess the videos to obtain cleaner data that include target children performing ASD behaviors only. To this end, we leverage one of the most popular object detection models Detectron2. After that we apply a pose estimation model leveraging MediaPipe framework.

Figure 1.2. Preprocessing pipeline for stereotypical behaviour recognition using Detectron2 and MediaPipe pose estimation.

1.2.1. Child Detection

To detect and crop the target child from each video frame, we utilized Detectron2 which leverages a two-stage architecture:

The Region Proposal Network (RPN) operates as the first stage, scanning the entire image to generate bounding boxes around regions likely to contain objects (proposals). It uses convolutional layers to predict objectness scores and bounding box coordinates.

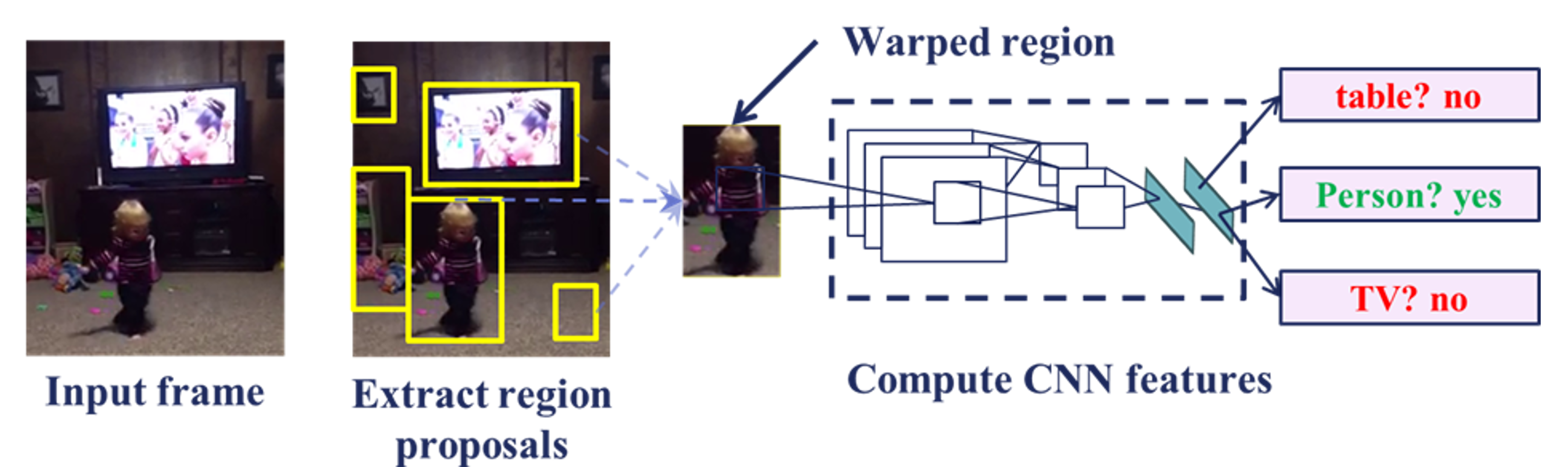

Figure 1.3. Region Proposal Network (RPN) Architecture for Object Detection.

The second stage involves Mask R-CNN, which refines these proposals by classifying the objects and generating pixel-wise masks. This allows precise localization of the child in each frame. Mask R-CNN adds a segmentation branch to the Faster R-CNN framework, enabling the network to produce a high-resolution binary mask for each region of interest (RoI).

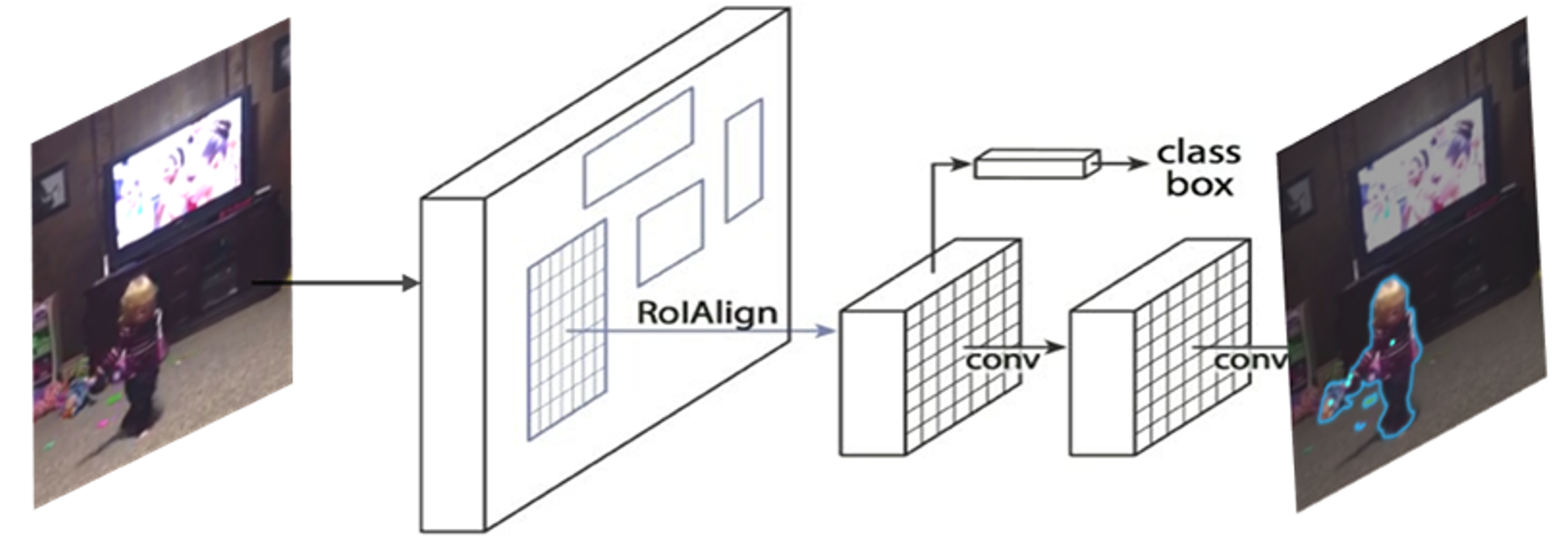

Figure 1.4. Mask R-CNN Architecture for Instance Segmentation.

We used pre-trained weights from the COCO dataset for efficient transfer learning. Once the target child was detected, we cropped the region inside the bounding box, resizing all frames to a fixed resolution, and discarded non-relevant background content to improve behavior-focused feature learning.

Figure 1.5. Example of child detection using Detectron2.

1.2.2. Pose Estimation

To further enhance the understanding of body dynamics, we applied MediaPipe’s holistic pose estimation, extracting 3D landmarks (joints and connections) from each frame. The extracted skeletons were saved as JSON files to preserve temporal consistency and inter-joint relationships across frames.

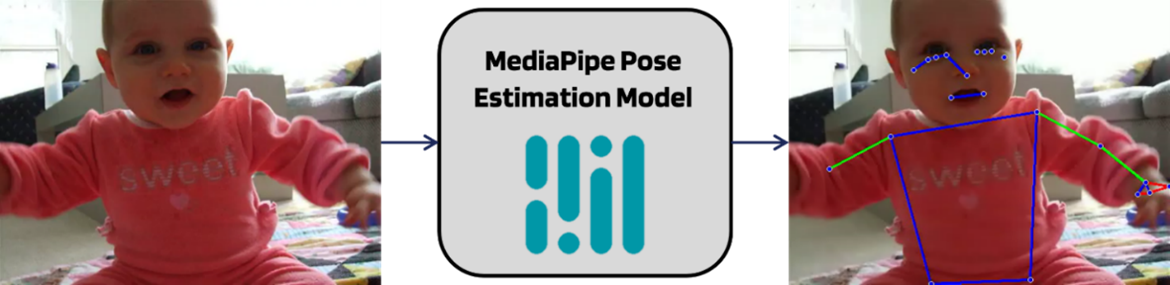

Figure 1.6. MediaPipe Pose Estimation Framework for Skeletal Keypoint Detection.

1.3. Action Recognition

For the core task of action recognition, we employed MViT-v2, which demonstrated superior spatiotemporal learning capabilities compared to CNNs or other transformer architectures. After benchmarking multiple models, MViT-v2 was chosen for its hierarchical attention mechanisms and robust performance on complex video tasks.

MViT architecture learns visual representations by progressively increasing the channel resolution while reducing the spatiotemporal resolution across stages. Early layers process high-resolution, low-channel features for simple visual patterns, while deeper layers operate on coarser, high-channel representations to capture semantic information. This design is especially effective for dense, space-time video signals where subtle temporal cues, such as brief stimming behaviors, must be detected.

Figure 1.7. Multi-scale Vision Transformer (MViT-v2) Hierarchical Attention Mechanism and Spatiotemporal Processing

A significant advantage of MViT lies in its temporal sensitivity. Unlike Video-SWIN or ViViT models, which rely heavily on static appearance and maintain performance even on shuffled frames, MViT-v2 demonstrates a significant performance drop when frame order is disrupted. This confirms its strong utilization of temporal information, crucial for ASD behavior recognition.

1.4. Experimental Results

This study is the first to explore the use of the MViT-v2 for recognizing STB associated with ASD. On the ESBD and SSBD test splits, our approach achieved an accuracy of 96.55% and an F1-score of 96.52%, significantly surpassing prior benchmarks. These results affirm the viability of using multiscale spatiotemporal transformers and robust preprocessing techniques for ASD-related behavioral recognition.

Method	Acc (%)	Params (M)
3DCNN	42.00	~33
Conv‑LSTM	74.00	~38
VideoMAE (ViT‑B/16)	87.40	303.9
Video‑SWIN + Lnguage	90.04	~92
VST+L(d)(pretrained)	94.43	~94
MViT + Data Augmentation	91.72	~27
MViT + Pose Estimation	93.59	~39
MViT + Detectron2	96.55	~37

Figure 1.8. Confusion Matrix for STB Recognition on ESBD and SSBD Test Splits.

Gaze behaviour analysis provides a non‑invasive approach to assess a child’s attention and social engagement. Our model targets critical visual attention markers such as mutual gaze and joint attention by combining face detection, tracking and gaze estimation without specialised eye‑tracking hardware.

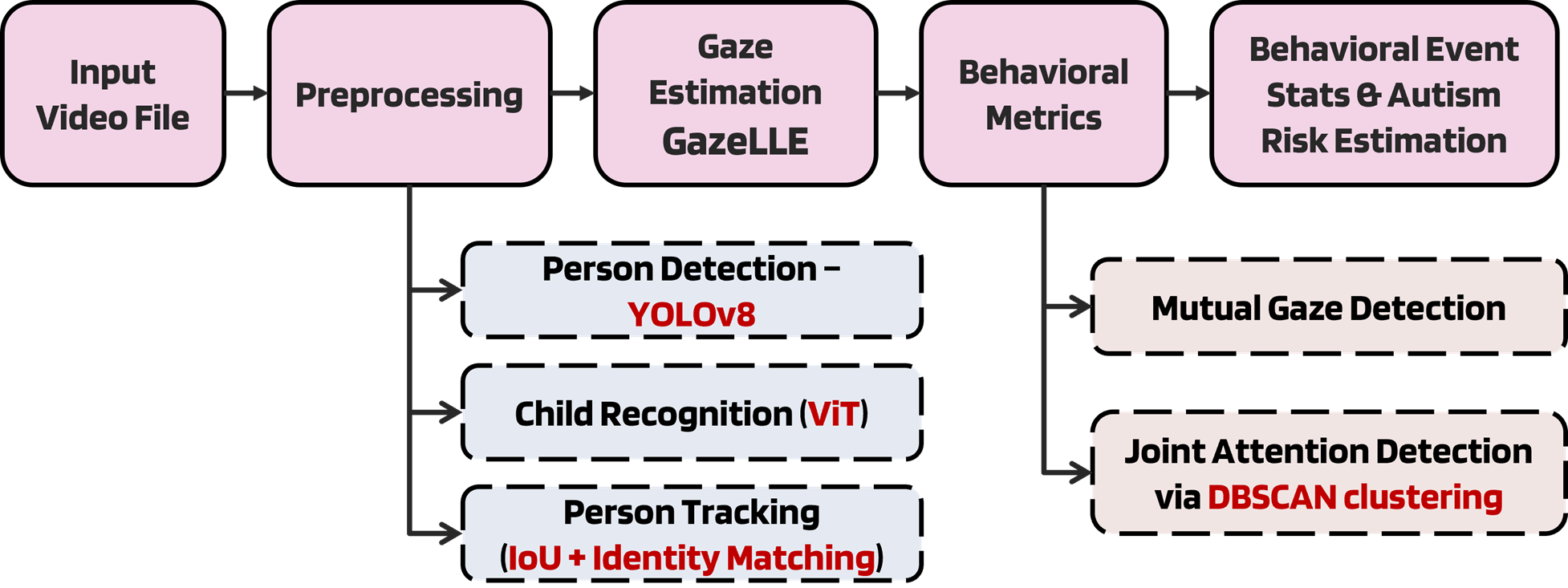

Figure 2.1. Automated Gaze-Based Autism Screening Model Pipeline.

2.1. Preprocessing

2.1.1. Person Detection and Recognition

To ensure accurate behavioral analysis and isolate relevant individuals in diverse video scenes, our system integrates YOLOv8, a state-of-the-art real-time object detection model to detect all persons in each video frame. Detected individuals are then processed through a dedicated Child Recognition module powered by a ViT, enabling the system to identify and focus exclusively on the child subject for subsequent analysis.

2.1.2. Person Tracking

To ensure accurate behavioral analysis and isolate relevant individuals in diverse video scenes, our system integrates YOLOv8, a state-of-the-art real-time object detection model to detect all persons in each video frame. Detected individuals are then processed through a dedicated Child Recognition module powered by a ViT, enabling the system to identify and focus exclusively on the child subject for subsequent analysis.

2.1.2.1. Intersection over Union (IoU)

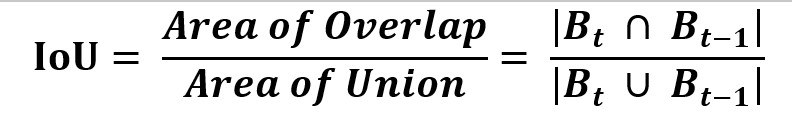

At the core of our tracking mechanism is Intersection over Union (IoU), a geometric metric used to associate object detections across consecutive frames. IoU calculates the overlap between bounding boxes from the current and previous frames, helping determine if they represent the same individual.

Figure 2.2. Intersection over Union (IoU) Calculation between Two Bounding Boxes.

If the IoU score exceeds a defined threshold, the system considers the detection a continuation of the previous track. This approach is computationally efficient and well-suited for real-time applications. However, it may face limitations under fast motion or occlusion, where appearance-based cues become essential.

Figure 2.3. Computing Intersection over Unions for various bounding boxes.

2.1.2.2. Identity Matching

To enhance robustness in challenging scenarios, the system integrates identity matching techniques in addition to IoU. This involves extracting visual embeddings such as color histograms or deep appearance features from each bounding box and comparing them to those of previously tracked individuals. A similarity score is computed to assess whether the current detection belongs to an existing identity or a new one.

Figure 2.4. Identity Matching Equation.

Combining spatial (IoU-based) and appearance-based matching increases tracking accuracy, reduces identity switches, and ensures reliable association of behavioral data to the correct child throughout the video sequence.

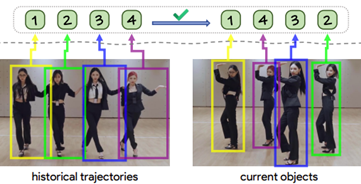

Figure 2.5. Identity Matching Person Tracking Diagram of the in-context ID prediction process.

2.2. Gaze Estimation (Gaze-LLE)

Gaze-LLE is a transformer-based gaze estimation framework designed for minimal computational overhead and maximum flexibility. Its architecture consists of two primary components:

2.2.1. Frozen Scene Encoder

The backbone of Gaze-LLE is DINOv2, a self-supervised ViT model that produces high-quality, dense scene representations. DINOv2 is trained on large-scale, unlabeled data via contrastive learning (Distillation with No Labels), and excels in both image- and pixel-level vision tasks. In our implementation, the DINOv2 encoder is frozen, meaning its weights are not updated during training. This design choice is motivated by:

Reducing training complexity and memory requirements

Preserving DINOv2’s generalized visual representations

Prevents overfitting on small datasets by leveraging robust, pre-learned representations.

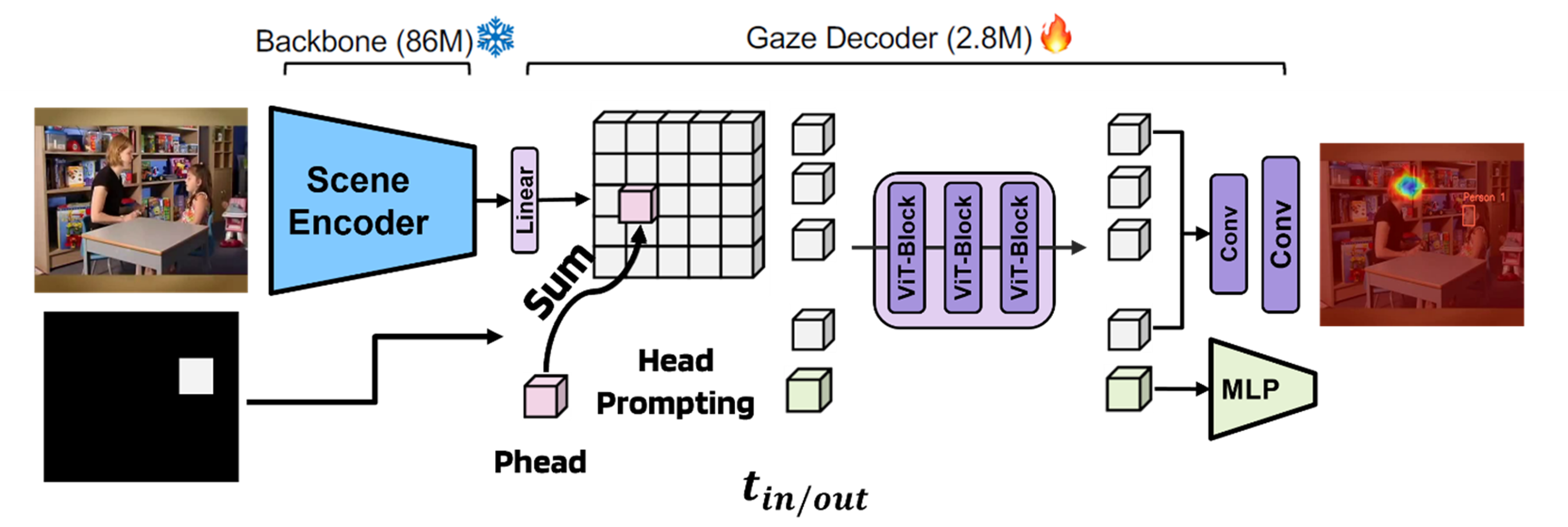

Figure 2.6. Gaze-LLE Framework Architecture - Frozen DINOv2 Backbone with Head Prompting and Transformer-Based Gaze Decoder for Heatmap Generation.

2.2.2. Gaze Decoder Module with Head Prompting

The output of the scene encoder is passed to a transformer-based gaze decoder. This module incorporates head position embeddings (the bounding box of the child’s face) post-encoding, which is an innovation over the traditional approach of integrating them pre-encoding. This architecture enables Gaze-LLE to operate efficiently with only 2.8 million learnable parameters, making it highly suitable for real-time deployment.

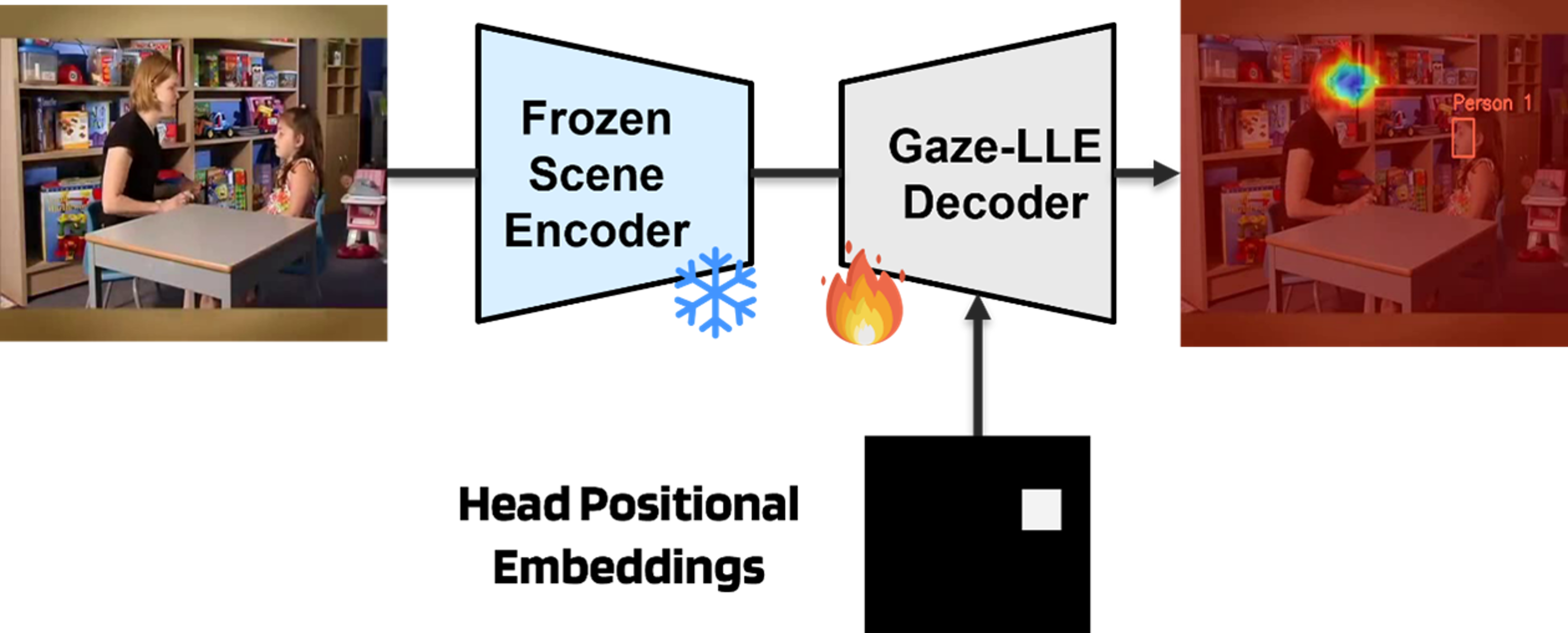

Figure 2.7. Gaze Decoder Module with Head Prompting for Enhanced Gaze Estimation.

2.3. Social Gaze Metrics

The output of Gaze-LLE is not limited to raw gaze heatmaps. We extract several quantitative behavioral metrics from its predictions.

2.3.1. Mutual Gaze

Defined as the proportion of frames in which the child's gaze overlaps with the region of the observer’s (e.g., parent's or doctor's) face. Mutual gaze is a well-established early indicator of social-communicative development and is often diminished in children with ASD.

Figure 2.8. Mutual Gaze Analysis with Positional Prompting.

2.3.2. Joint Attention

Assessed using DBSCAN (Density-Based Spatial Clustering of Applications with Noise), a clustering algorithm that groups gaze targets across frames. Consistent gaze clusters over time are interpreted as signs of shared focus such as looking at the same toy or character on the screen.

Joint attention is crucial in early language and social development and is frequently impaired in ASD.

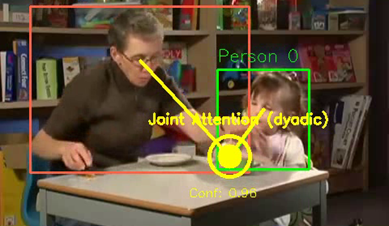

Figure 2.9. Joint Attention Detection Using Gaze Clustering.

This model is designed to capture real-time behavioral, physiological, and emotional cues essential for assessing ASD in toddlers. It offers a scalable, accessible solution that uses webcam to analyze a child’s behavior during interactions with visual content on a screen.

3.1. Visual Content Selection

To facilitate the engagement of autistic children with meaningful and socially relevant visual content, we integrated selected episodes from the “Pablo” series into our platform. Pablo features a five-year-old autistic boy who navigates real-life situations with the help of imaginary animal friends. The series is specifically designed for autistic children, addressing social anxiety, emotional understanding, and communication through relatable storytelling and positive behavioral modeling.

We selected this series because it represents real-life social challenges and coping mechanisms in a way that is emotionally resonant and therapeutically appropriate. By embedding this content in our system's web interface and activating the camera in the background, children interact with the content naturally, which enables the collection of spontaneous valid behavioral responses.

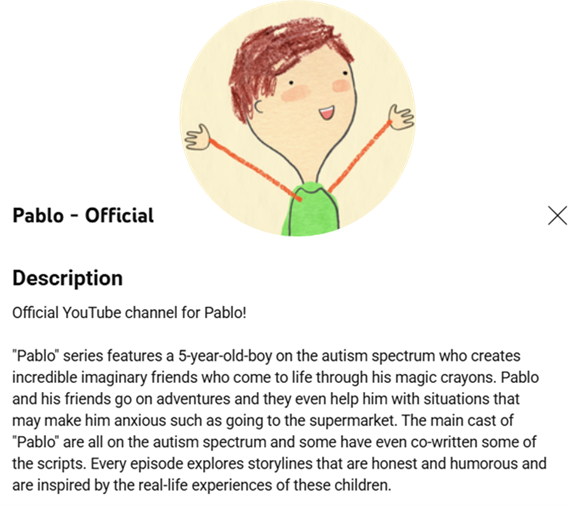

Figure 3.1. Description of the Pablo channel used to present visual stimuli during Sensorimotor and Socioemotional Analysis.

3.2. Facial Landmarks Detection

Once the webcam is activated, frames are continuously captured and processed in real-time. MediaPipe Face Mesh framework is applied to detect and extract 468, 3D facial landmarks from each detected face. These facial regions are then classified using a ViT model, which determines whether each detected face belongs to a child or an adult. Only child faces are retained for downstream analysis, ensuring that all subsequent markers relate specifically to the target subject.

Facial landmarks provide the spatial foundation for several core features. In particular, the centers of the left and right irises are computed by averaging the coordinates of four dedicated landmarks each. The left iris center is derived from landmarks 474-477, while the right iris center is calculated using landmarks 469-472.

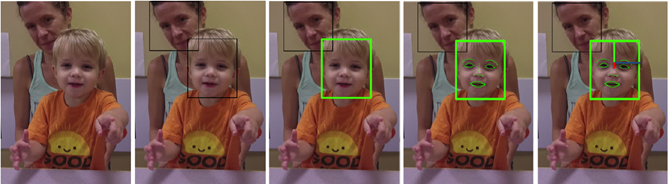

Figure 3.2. Preprocessing steps prior to eye contact detection. Left to right: 1) Input image; 2) All faces are detected; 3) Child’s face is selected; 4) Facial landmarks are localized; and 5) Head pose is estimated.

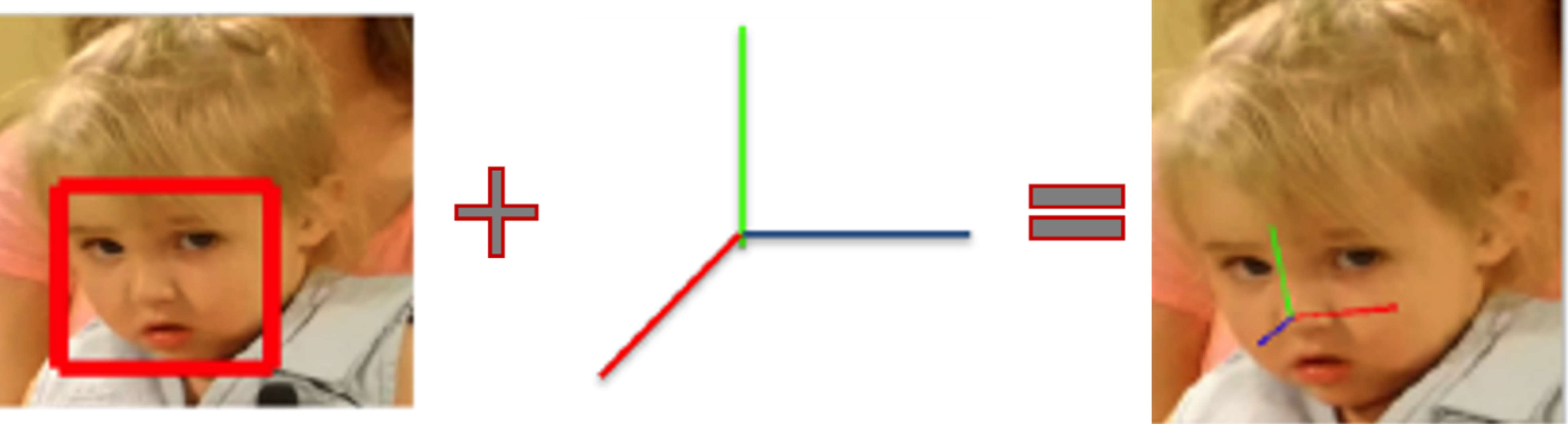

3.3. Head Pose Estimation

Head orientation is estimated using reference points derived from the detected 3D facial landmarks, particularly the nose tip, chin, and eye corners. Then we compute the Euler angles (Pitch, Yaw, and Roll). These angles represent the spatial orientation of the head and are tracked over the entire video session.

Figure 3.3. Demonstrates the real-time estimation of head orientation to assess visual attention and engagement.

Head pose variability is an important biomarker in ASD, as abnormal head motion patterns may indicate issues with attention regulation or sensory processing. This variability is captured by measuring changes in the Euler angles across time, thereby producing a quantitative marker of head movement stability.

3.4. Eye Blinking Detection

Blinking analysis is performed through the Eye Aspect Ratio (EAR), which quantifies changes in eyelid separation relative to eye width. Three distances are extracted from the eye contour landmarks: inner vertical distance, outer vertical distance, and horizontal eye width.

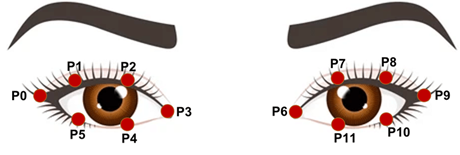

Figure 3.4. Eye Aspect Ratio (EAR) Calculation Using Eye Contour Landmarks.

The EAR is computed as the average of the two vertical distances divided by the horizontal distance. A lower EAR indicates eye closure, while a higher EAR corresponds to open eyes. By tracking EAR over time, we can identify blink events and calculate blink rate and duration, which are relevant markers of sensory processing in ASD.

The EAR is calculated using the following formula:

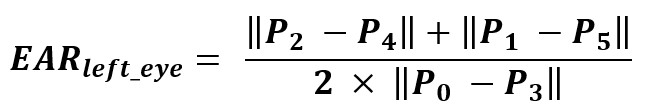

Figure 3.5. Eye Aspect Ratio (EAR) Calculation Equation.

3.5. Emotion Recognition

To analyze emotional responses, each detected child’s face is passed to the DeepFace model. It performs face detection, alignment, and embedding extraction using a deep CNN. The extracted features are compared to pre-trained templates to classify emotions into standard categories.

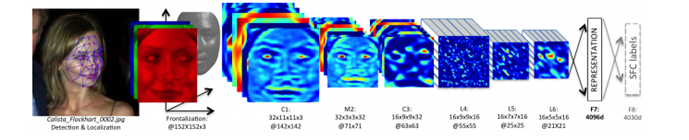

Figure 3.6. Visual representation of the DeepFace CNN pipeline used to extract emotional features from facial images.

This analysis tracks changes in the child's emotional expression while watching the visual content and provides insight into their affective engagement. The emotion pattern over time is especially useful in evaluating the child’s reaction to specific scenes and identifying moments of empathy, anxiety, or enjoyment.

3.6. Open Mouth Abnormality Detection

Open mouth posturing is another potential marker for ASD and is assessed using the Mouth Aspect Ratio (MAR). MAR is computed from lip landmarks extracted using the Dlib facial landmark detector. The ratio compares the vertical mouth opening to the horizontal lip distance. Consistently high MAR values are interpreted as abnormal open-mouth appearances, which may suggest neuromotor control issues.

Figure 3.7. Mouth Aspect Ratio (MAR) Calculation Using Lip Landmarks.

The MAR is calculated using the following formula:

Figure 3.8. Mouth Aspect Ratio (MAR) Calculation Equation.

3.7. Output Metrics and System Integration

All extracted features are processed and saved in real-time, producing a comprehensive set of behavioral markers for each child session. These include blinking rate, head pose variability, gaze stability, eye contact duration, emotion fluctuation patterns, open mouth appearances, and an overall social engagement score.

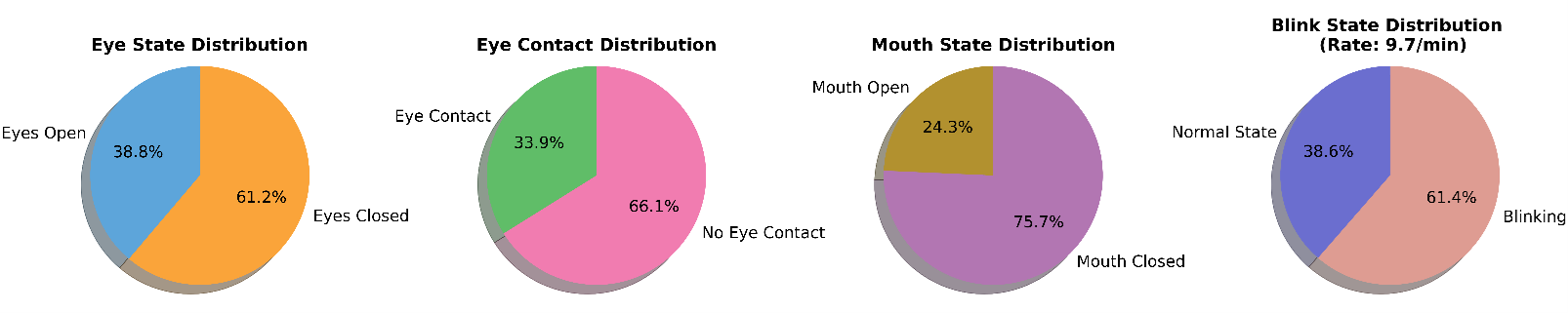

Figure 3.9. Eye State, Eye Contact, Mouth State, and Blink State Distributions for a given session.

The model is deployed within a web-based platform where the child is presented with educational video stimuli chosen by the parent. The webcam runs unobtrusively in the background, allowing for a naturalistic interaction setting. In addition to providing immediate insights, this system doubles as a data collection tool for future studies, contributing to a scalable, multimodal framework for early ASD detection and assessment.

4.1. Dataset Description

The dataset used in this model is the Audio-Visual Autism Spectrum Dataset (AV-ASD), which was created to support research on autism-related behaviors. It includes 928 video clips collected from 569 publicly available YouTube and Facebook videos, showing various behaviors in different settings.

AV-ASD has several advantages over previous autism-related datasets. It contains more clips, more behavior categories, and is the first dataset to include social behaviors. It also supports multi-label annotations, which is important because multiple autism-related behaviors can happen at the same time.

The annotation process was done in two steps. First, six student annotators labeled the behavior in each video. Then, a Speech-Language Pathologist (SLP) with 15 years of experience checked each clip again and labeled all behaviors present using a multi-label format, without marking time intervals.

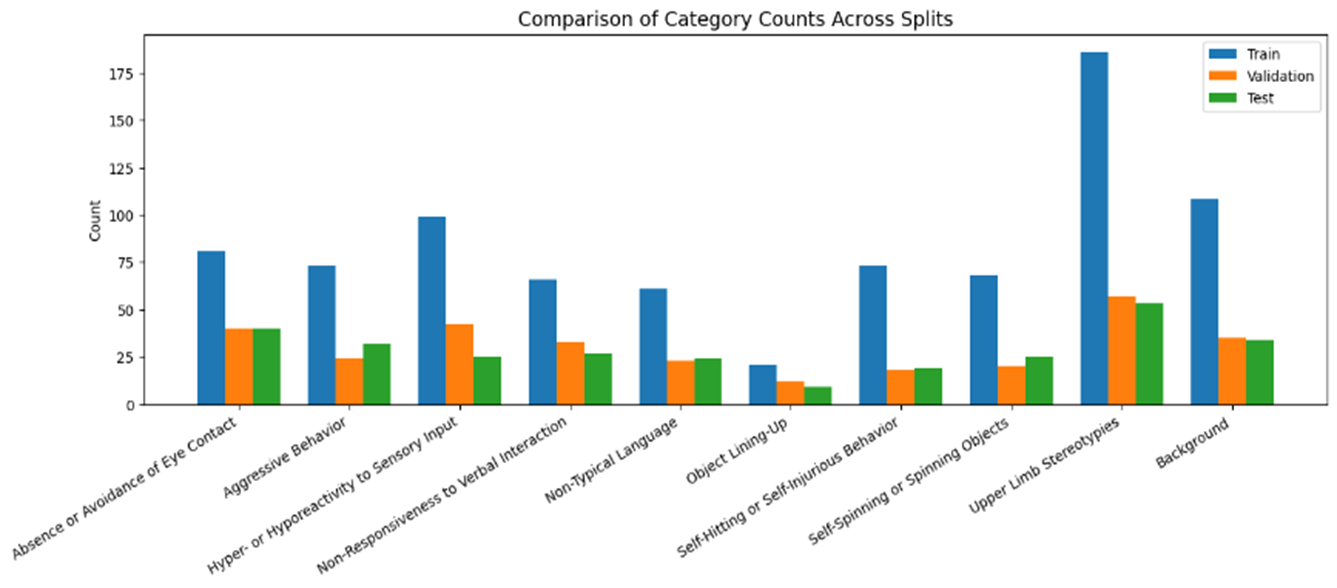

Figure 4.1. Audio-Visual Autism Spectrum Dataset (AV-ASD) Overview: Distribution of Clips per Behavior Category.

4.2. Preprocessing

To prepare the data for the MLLM, three types of preprocessing steps are performed: one for image representation and two for audio representation.

4.2.1. Image Representation

The visual representation is obtained by uniformly sampling 9 frames from each video. These frames are then arranged in a 3×3 grid to form a single image representing the video clip.

4.2.2. Audio Representation

The first step in audio preprocessing involves generating an audio caption that describes the semantic content of the audio signal. This is achieved using CoNeTTE, an audio captioning model that follows an encoder–decoder architecture. The encoder is a modified ConvNeXt (CNext) model adapted from the vision domain to process audio signals, while the decoder is a Transformer network that generates the caption text by predicting the next word based on previous tokens and the audio representation.

Figure 4.2. CoNeTTE Audio Captioning Model Architecture: Modified ConvNeXt Encoder and Transformer Decoder.

4.2.3. Audio Transcription

The speech transcription stage transforms spoken language from video clips into structured text. This is accomplished using Whisper, a large-scale speech recognition model developed by OpenAI. In this work, the Whisper encoder processes each audio segment and extracts a fixed-length speech representation. To obtain the final speech feature vector, average pooling is applied across the encoder’s time dimension, producing a robust embedding that captures the semantic and acoustic content of the spoken utterances. These transcriptions serve as a textual input for downstream models, enabling the system to recognize and reason about autism-related behaviors involving non-typical language and other speech-linked social indicators.

Figure 4.3. Whisper Speech Transcription Pipeline: Multitask Encoder-Decoder Architecture with Positional Encoding.

4.3. PaliGemma-2 Instruction Tuning

To improve autism behavior recognition, we propose instruction tuning of PaliGemma-2, a powerful VLM that combines visual and textual understanding. The model input includes a 3×3 grid of uniformly sampled video frames, along with a textual prompt enhanced by audio captions and speech transcriptions.

For training, we construct a paired instruction dataset Inst,y, where Inst denotes the multimodal input (image grid + enriched prompt), and y represents the multi-label behavioral annotation corresponding to autism-related categories. The prompt is designed to guide PaliGemma toward recognizing nuanced behaviors such as non-typical language, non-responsiveness, and repetitive motor actions.

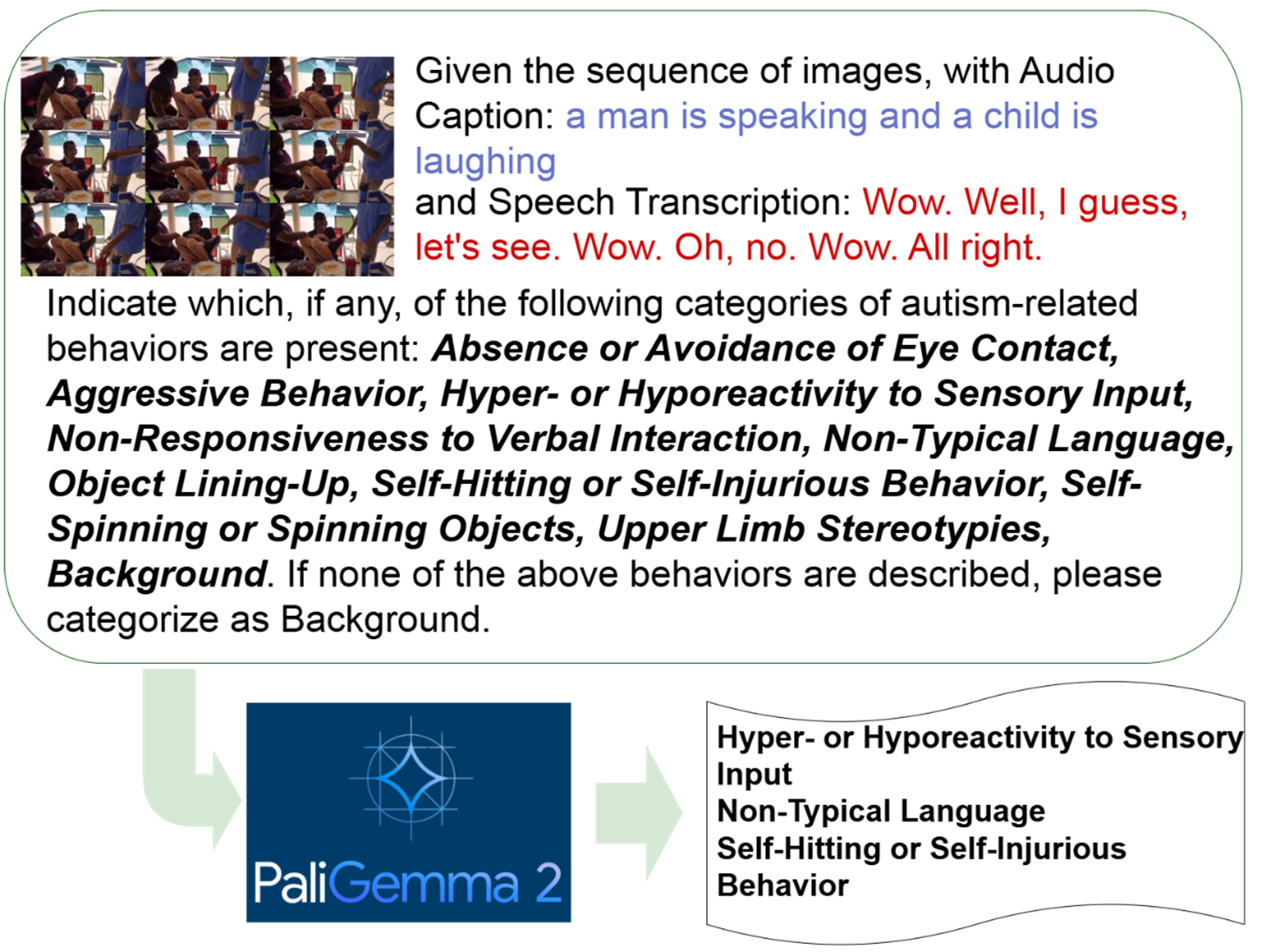

Figure 4.4. PaliGemma Instruction Tuning for Multimodal Autism Behavior Recognition from Audio-Visual Inputs.

To enable efficient fine-tuning, we leverage LoRA (Low-Rank Adaptation) or parameter-efficient tuning methods. The training process employs Cross-Entropy Loss with class weighting to address label imbalance, and model performance is monitored using macro-averaged F1 scores. By integrating temporal, linguistic, and semantic cues, this tuning process empowers PaliGemma to capture the complex interplay between speech and behavior, leading to more accurate and explainable predictions for autism screening.

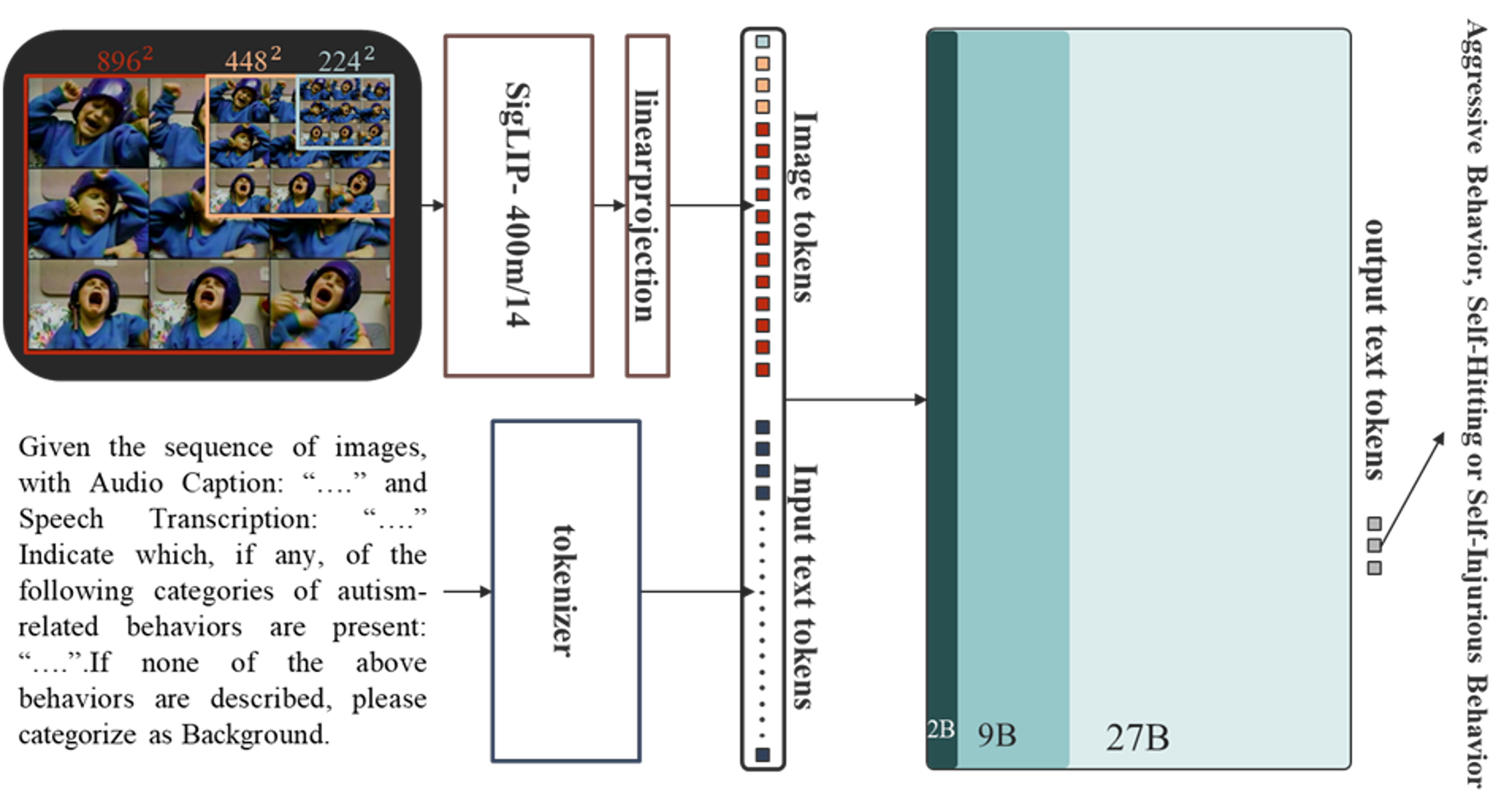

Figure 4.5. PaliGemma-2 Architecture for ASD Behavior Analysis: Multimodal Fusion of Image and Text Tokens with SigLIP Projection.

4.4. Results

The proposed pipeline leverages PaliGemma-v2, achieving higher F1-scores in several behavior categories compared to LLaVA-ASD, despite utilizing 10 billion fewer parameters. However, due to the complexity of the dataset and the inherent challenges of multi-label classification in large-scale multimodal models, the overall performance still requires substantial improvement.

Table 4.1. F1-score comparison between the proposed PaliGemma-2 and LLaVA-ASD across AV-ASD dataset.

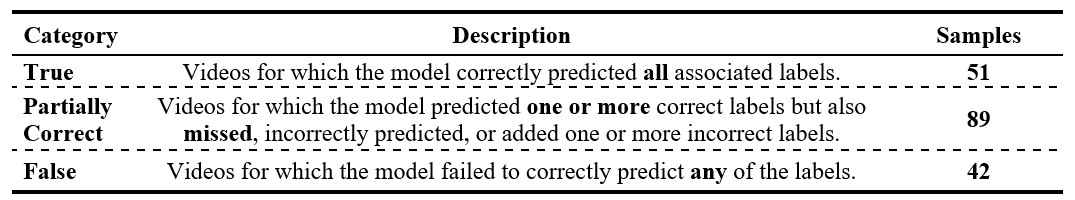

Table 4.2. Classification Performance on the Test Dataset (182 Videos Total).

Graphomotor tasks not only reflect motor development but also reveal patterns of cognitive and expressive functioning. A growing body of research indicates that children with ASD often experience challenges in performing handwriting tasks, which can be detected and quantified using computational models.

This model was developed as part of a broader initiative to explore new diagnostic pathways in ASD assessment. Specifically, it investigates the cognitive distinctions embedded in children’s creative outputs, offering a promising avenue for non-invasive behavioral screening.

5.1. Dataset

The dataset used for this study was sourced from Kaggle, released in 2024, and includes a total of 1,115 labeled images. The images are divided across three types of graphomotor tasks: Drawings, Coloring, and Writing. Each sample is annotated as either ASD or non-ASD. For ASD-labeled data, an additional classification is provided to indicate severity levels: mild, moderate, or severe.

The dataset reflects a variety of expressive patterns and maturity levels that help characterize the motor and cognitive profiles of children. The insights derived from this work extend beyond detection, contributing to the understanding of the relationship between artistic expression and neurodevelopmental conditions.

Figure 5.1. Sample Coloring and Drawing Data from Children with ASD and Typically Developing (TD) Peers.

5.2. Preprocessing

To ensure optimal performance of the classification models, a standard preprocessing pipeline was implemented. Images were resized to a consistent resolution and normalized to match the input requirements of the different neural network architectures. Noise removal techniques and augmentation methods (rotation, flipping, and contrast adjustments) were selectively applied to enhance generalization and robustness.

5.3. Classification Model

We implemented a two-stage classification framework: the first stage determines whether a child is classified as ASD, and if so, the second stage assesses severity by evaluating performance difficulty or atypicality. This approach achieves high accuracy and demonstrates strong diagnostic reliability.

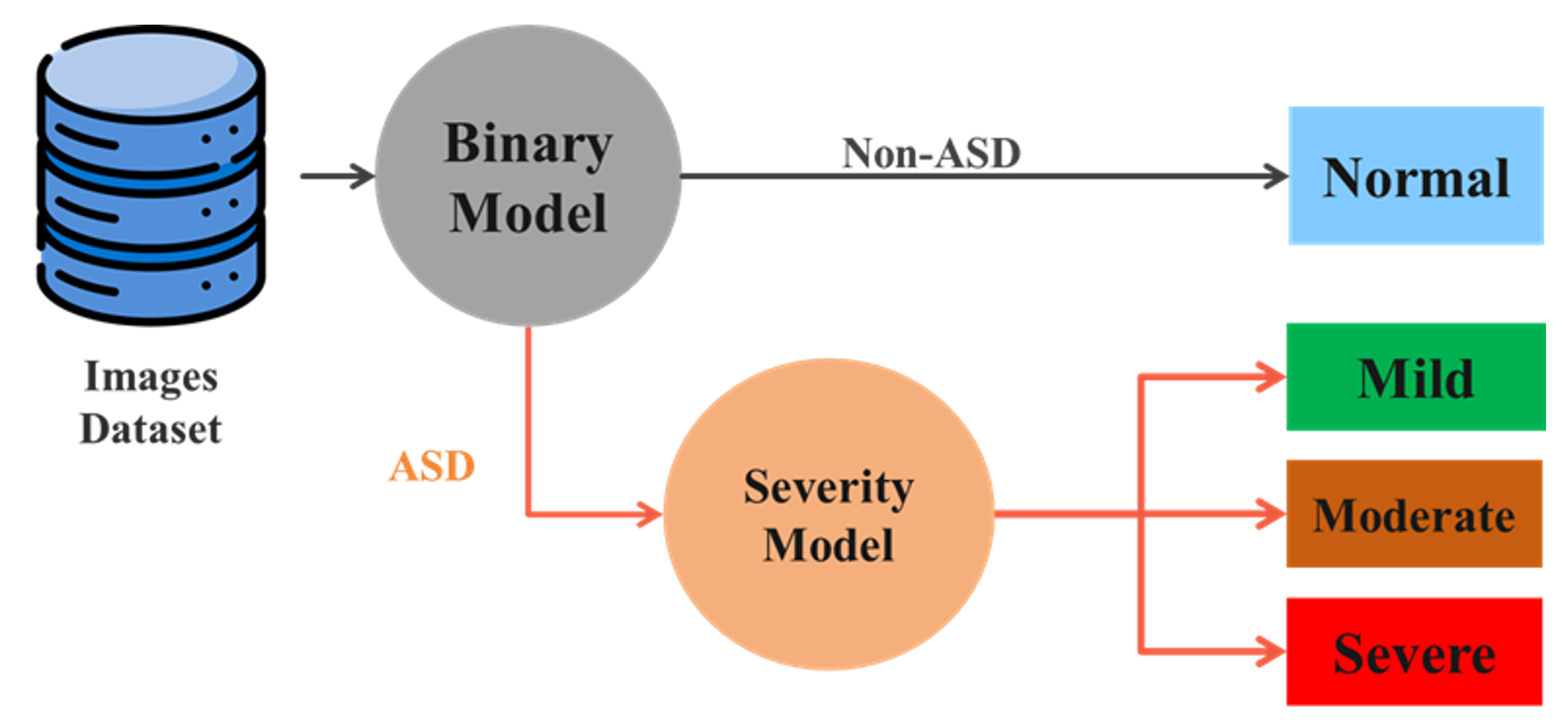

Figure 5.2. Two-Stage Classification Framework for ASD Detection and Severity Assessment.

To implement this pipeline, we evaluated a diverse set of models. These models were trained and validated on the preprocessed dataset, with each model evaluated on both tasks (ASD detection and severity assessment). The multi-level inference process introduced a novel granularity in ASD assessment, allowing not only detection but also personalized characterization of motor-related impairments, which is currently underrepresented in existing diagnostic approaches.

5.4. Results

Model training was conducted using the standard supervised learning paradigm. For MobileNet model, we used a Cross-Entropy loss function and Adam optimizer with learning rate tuning based on validation performance. For SVM and RF classifiers, Grid Search was applied to determine optimal hyperparameters.

Data were split into 80% training and 20% testing partitions. Each model underwent multiple iterations with 5-fold cross-validation to ensure statistical validity and reduce overfitting.

Across both stages of classification, our models demonstrated strong performance:

• ASD Detection: Multiple models achieved over 95% accuracy, confirming the predictive value of visual and spatial features extracted from drawings, coloring, and handwriting.
• Severity Classification: Similarly, classifiers achieved high accuracy in distinguishing between mild, moderate, and severe ASD cases, with the top-performing model maintaining over 95% accuracy.

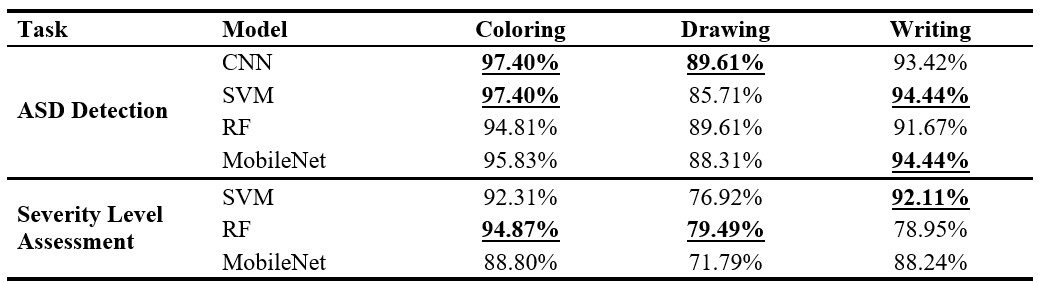

Table 5.1. Performance of ASD Detection and Severity Estimation Models Using Graphomotor Tasks.

These results highlight the diagnostic potential of graphomotor analysis for early ASD detection. Unlike prior studies that focused only on handwriting, our framework offers enhanced detail and broader applicability in both research and clinical contexts. Additionally, expert reviews by child psychologists confirmed that variations in stroke consistency, pressure patterns, symmetry, and detail correlated with established ASD behavioral markers, reinforcing the validity of our computational approach.

In our system, we integrate Q-CHAT-10 analysis through a robust ensemble learning model capable of not only binary classification (ASD or non-ASD) but also estimating severity levels (mild, moderate, or severe). This enhances its applicability as a clinical decision support tool.

6.1. Dataset Description

We use a publicly available dataset which includes Q-CHAT-10 responses collected via online questionnaires.

• Age Range: Toddlers aged 12–36 months.
• Metadata: Includes age, gender, region, familial ASD history, and identity of the test respondent.
• Labels: Each entry is annotated as ASD or non-ASD and includes an assigned severity level.

This dataset serves as a valuable resource for validating our AI-powered pipeline in culturally specific contexts.

6.2. Model Architecture

To ensure accuracy and generalizability, we adopted an ensemble machine learning approach. The ensemble output is determined through soft voting, aggregating probabilities from each model to improve robustness against noise and class imbalance. This architecture enables the system to:

• Predict the likelihood of ASD based on Q-CHAT-10 responses.
• Assign severity levels for ASD-positive cases using a separate calibrated classifier.

The model is trained using stratified k-fold cross-validation (k=5) to ensure reliable performance across different age groups and demographics.

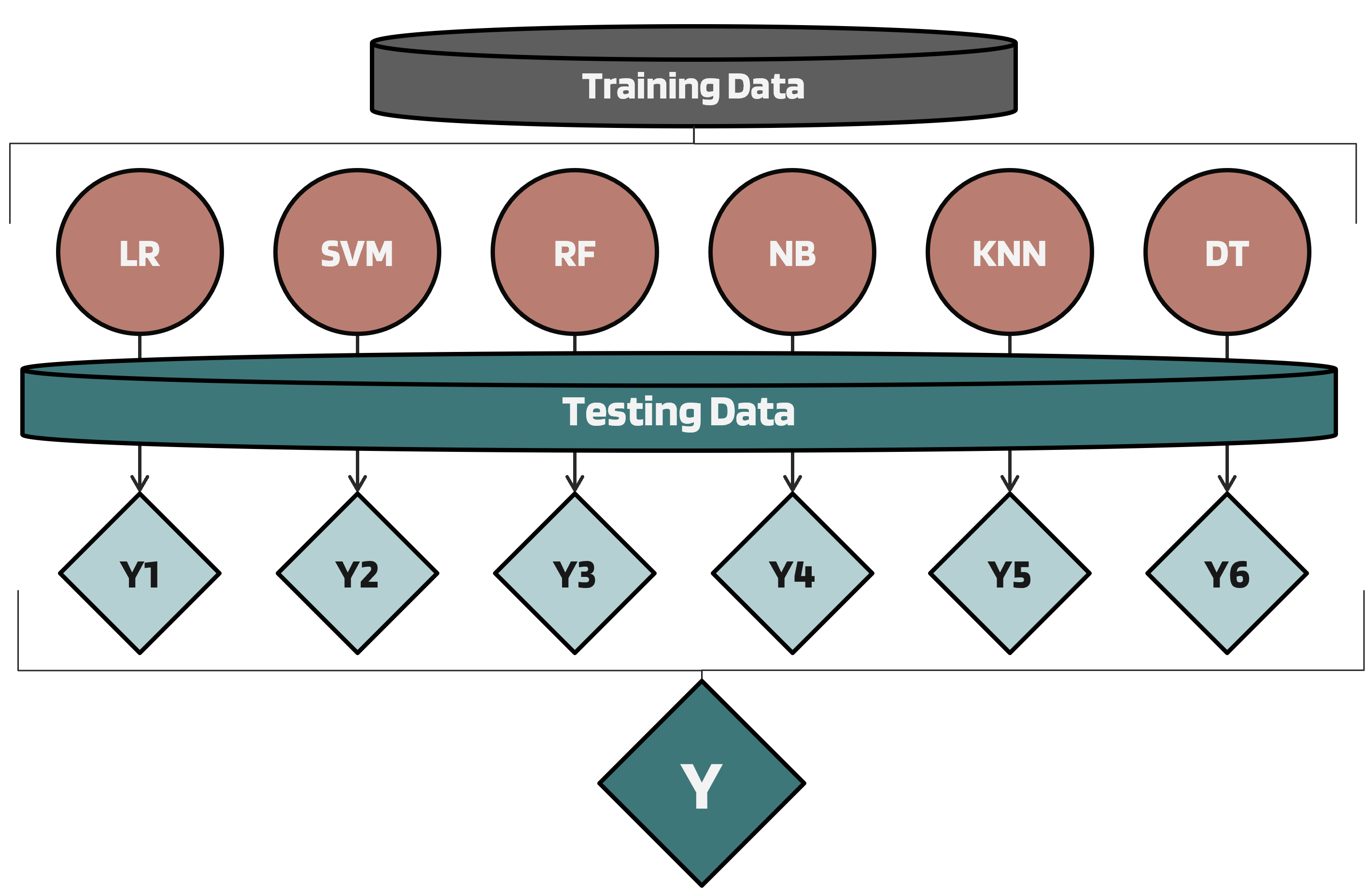

Figure 6.1. Ensemble learning architecture for analysing Q‑CHAT‑10 responses and estimating ASD risk and severity.

6.3. Model Interpretation

We also applied SHAP (SHapley Additive exPlanations) to interpret the model’s predictions and uncover key behavioral indicators most associated with ASD. The most impactful questions include:

• A6 (Following gaze), A7 (Empathy and comfort-seeking), A9 (Gestures like waving), A1 (Response to name), A5 (Pretend play): High feature values (in red) push the prediction strongly toward ASD.
• A2 (Eye contact), A3 (Pointing to request), A4 (Pointing to share interest), A8 (First words), A10 (Unusual staring): Still contribute, but less impact compared to the top ones.

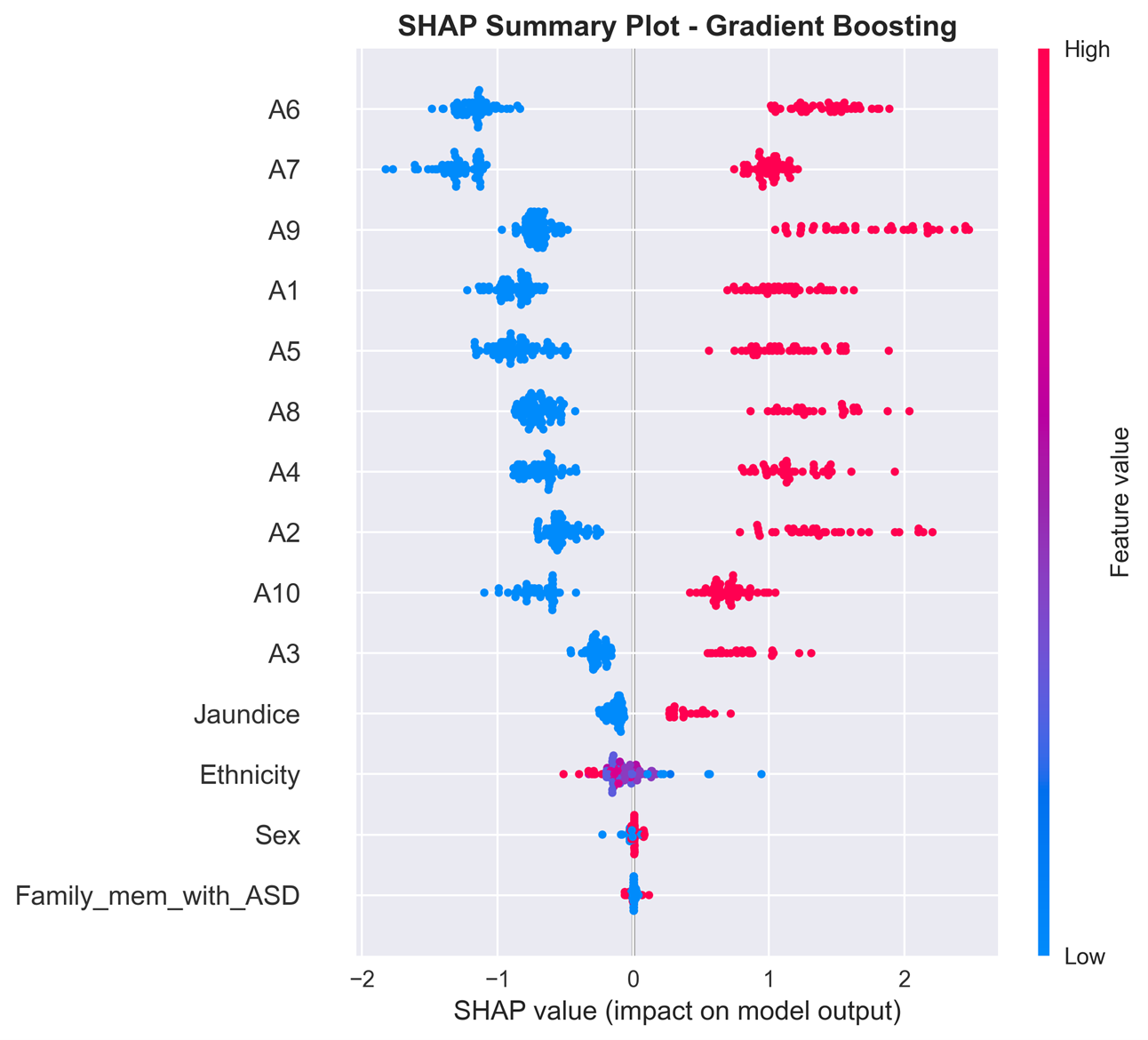

Figure 6.2. Q‑CHAT‑10 Feature Importance Using SHAP Values: Key behavioral indicators influencing ASD risk predictions.
